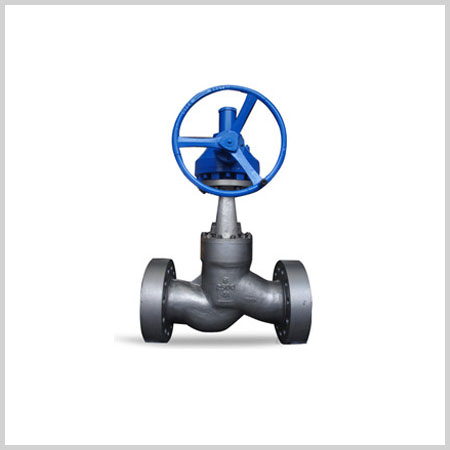

Alloy Steel Globe Valve

Alloy Steel Globe Valve

Design standard: BS 1873.
Body material: 4A.
Nominal diameter: 8″ (DN200).
Pressure: 2500 LB (PN420).
End connection: RF.
Face to face: ANSI B16.10.
Working temperature:-29℃~+427℃.
Test and inspection: API 598.

Description

Body Material: Carbon Steel, Stainless Steel, Alloy Steel.
Normal diameter: 1/2″~24″ (DN15~DN600).
End connection: BW, Flanged.
Pressure range: 150 LBs~2500 LBs(PN16~PN420).
Operation: Handwheel, Gearbox, Electric, Pneumatic.
Working temperature: -29℃~+560℃.
Features: One sealing face is designed one the body and disc, for large sizes valves will be designed with main disc and vice disc, and medium flow from up disc to down disc. And back seat sealing structure be designed. Can be designed with by-pass valve.
