Stainless Steel Swing Check Valve Manufacturer Oilong Provides CF8M Swing Check Valve: 4 Inch, Class 300 LB, BS1868, ASME B16.34, RF Ends

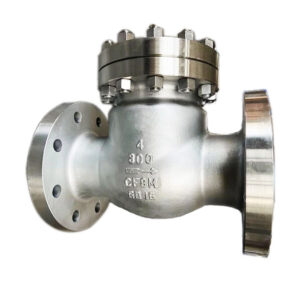

CF8M Swing Check Valve, 4 Inch, Class 300, BS1868, ASME B16.34, RF
CF8M Swing Check Valve, 4 Inch, Class 300, BS1868, ASME B16.34, RF
Description
Valve Descriptions
Name: CF8M Swing Check Valve.
Body: ASTM A351 CF8M
Nominal size: 4 Inch.
Nominal class: Class 300.
Connection ends: RF Flanged ends.
Face to face: as per ASME B16.10.
Test and inspection: API 598.
Valve Features
Swing type check valve
Bolted Cover
API 6D full bore, BS 1868 standard bore
Size range: NPS 2 – 24 Inch, DN50 – DN600.
Design pressure: class 150 – 2500 LB, PN10 – PN420.
Design standard: BS 1868, ASME B16.34, API 6D, DIN 3352.
Design temp.: -196℃ – 593℃.
Material: ASTM A216 WCB, ASTM A216 WCC, ASTM A217 WC6, ASTM A217 WC9,
ASTM A217 C5, ASTM A217 C12A, ASTM A352 LCB, ASTM A352 LCC
ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF8C
CN3MN, CK3MCUN, CN7M, ASTM A890 4A(CD3MN), ASTM A890 5A(CE3MN),
ASTM A890 6A(CD3MWCuN)
ASTM B148 C95800, ASTM B148 C95500.
Connection ends: ASME B16.5, ASME B16.25, EN1092 series.
